62-67 Chevy 2 Leaf spring relocation kit

Regular price $750.00

Shipping calculated at checkout.

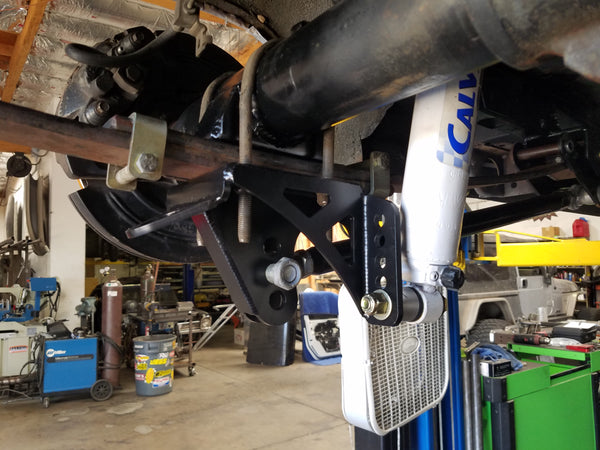

This kit inboard mounts your leaf springs to be flush with the outside of the factory sheet metal frame rail. Combine a mini tub and your Chevy 2 will fit a 275 on a 10 inch wheel. This kit works with FRC sliders or Calvert sliders if you already own them. I also have a front shock mount position Lower Spring Plate with extra adjustment to get the shock installed. We can accommodate a stem mount shock, or an eyelet mount shock.

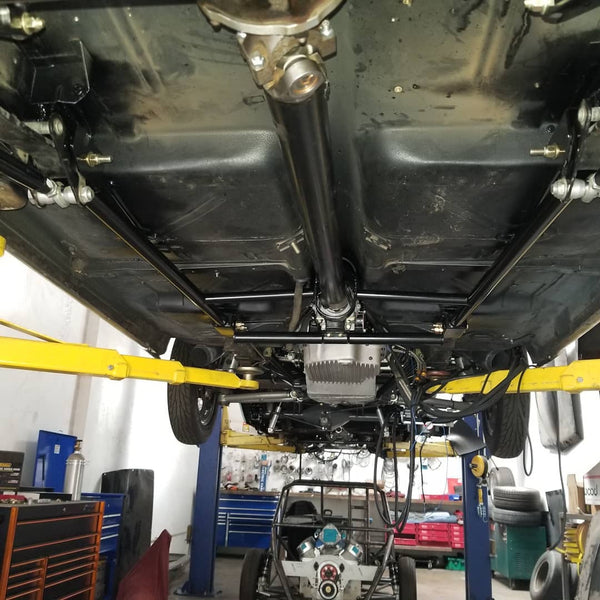

Tubing option-This option would be selected if you do not have frame connectors already. I supply the front subframe connector boxes, and 3 lengths of 1.625" MS tubing. This will give you enough tubing to build the rear crossmember for the sliders, and the subframe connectors themselves.

Parachute option-Also available is a parachute stub anchor, not required, but can be added. You get a clevis, aluminum saddle, and 2 pieces of tubing that slide inside each other, 2 triangle gussets, and hardware.

Parts proudly manufactured in the USA.
