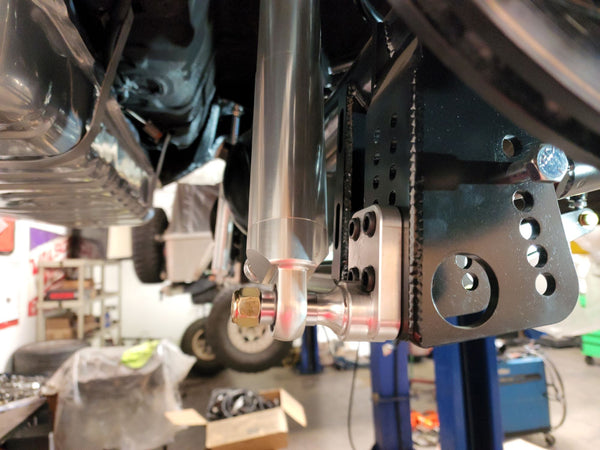

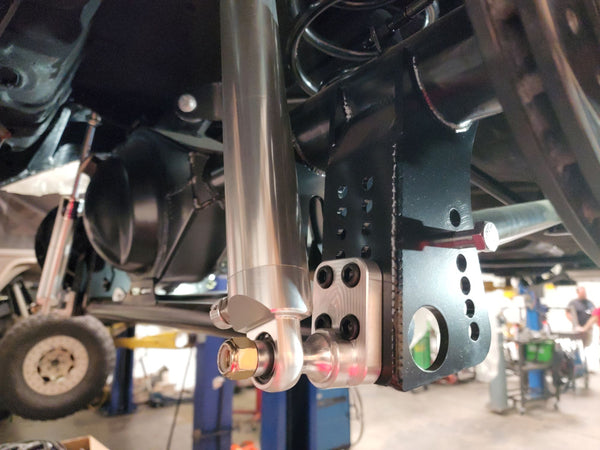

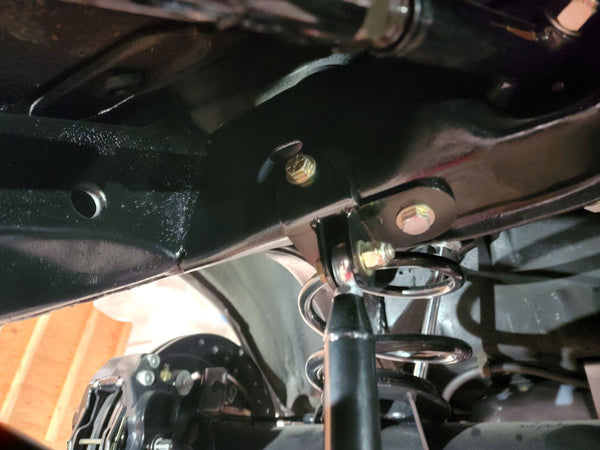

Update your GM A-body chassis car to have adjustable lower shock location, adjustable lower control arm mounting location, and a beefy 1.5" x .187" anti-roll bar with fully CNC machined billet steel arms. This kit takes the engineering and guess work out of adapting your A-body chassis to perform at the dragstrip. The shock location remains stock but features a CNC machined billet aluminum shock bracket that can adjust the location of any shock using a 1/2" diameter lower eyelet or bushing. The upper ARB location has a convenient tab that only requires drilling out 1 hole, and drilling another. No welding on the chassis is required.
Parts included-
-Lower control arm brackets, fully welded ready to install on the housing*
-Welded ARB*
-Billet shock mounts with hardware
-Upper ARB link arm brackets with hardware
-ARB link arms
-Billet ARB bushing housings with hardware.
-Welded ARB mounting plates*
-Lower crossmember tubing and center housing support gusset
-Misalignment spacers to match tab width of control arm boxes- Meant for 3/4 x 3/4 rod ends
*Available completely unwelded
