NOT A BOLT-ON KIT REQUIRES WELDING-Gen 1's need extra fab work and extra care for installation

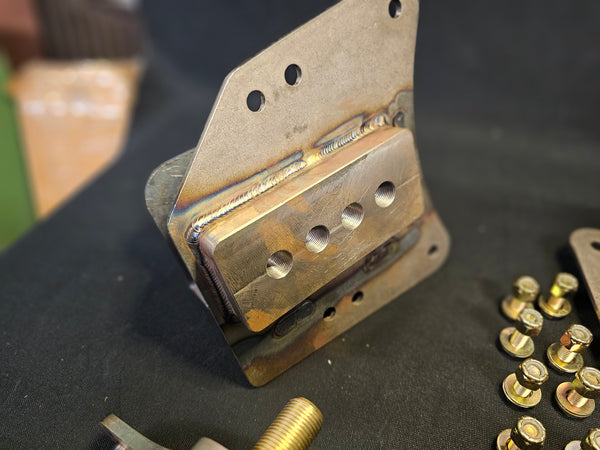

Do you need to lower your S10 Blazer?? Probably! Good news these boxes provide you with 3" of eyelet movement in lowering direction. You can take ride height out while maintain a greater % of anti-squat then you would if you lowered it with a block-tall perch or drop spring. Flush mount rockers are included as the standard, if you have an Assassin bar you will not need the rockers. These boxes have machined blocks welded to the backside that are drilled and tapped for 5/8"-18. The pins set the width for the box and allow for custom spacing the eyelet side to side. There is a little bit of room inside the box to push the spring inboard for a hint of additional clearance.

Use supplied template to cut-out pocket in frame rail. Clean up surrounding area for nice weld surface. Verify fitment against frame rail. Remember- you can always fully weld the parts at the end- double check measurements-spacing-spring locations etc.

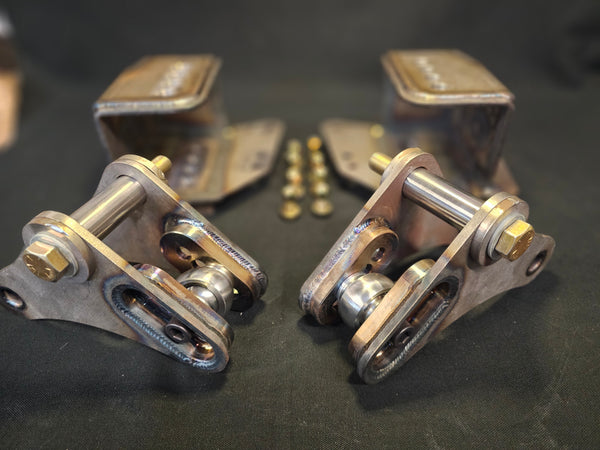

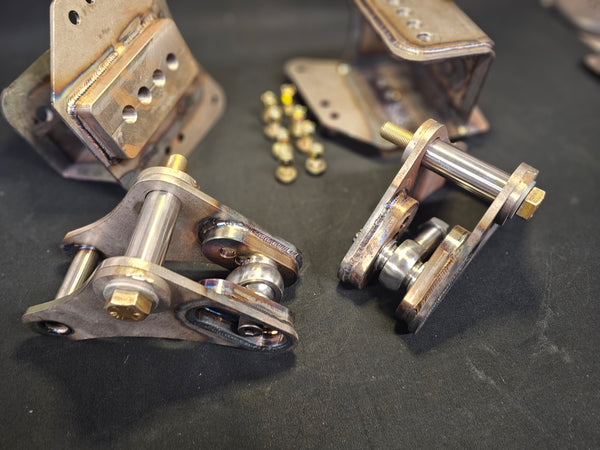

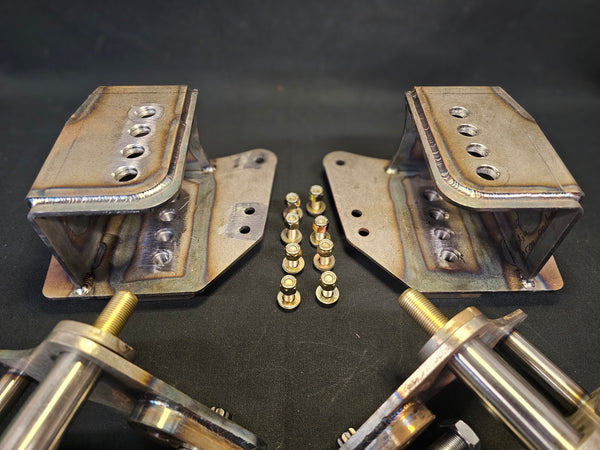

-Includes 2 boxes

-Frame cut-template

-Hardware to remount box to frame

-Rocker pivots with hardware and chrome moly rod ends
